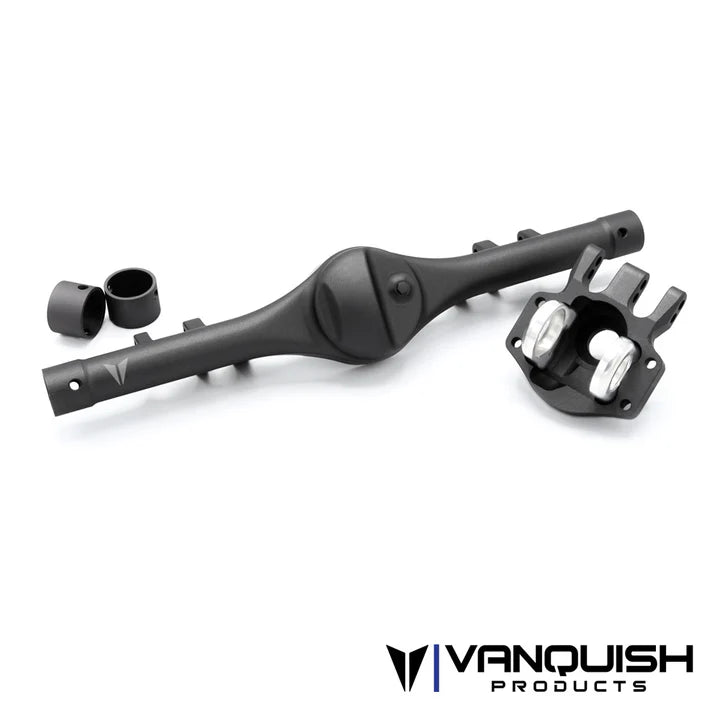

VANQUISH PRODUCTS F10T Aluminum Rear Axle Housing - Black Anodized

F10T rear axle for VS4-10 based vehicles

The F10T rear axle features a scale centered pumpkin housing with one-piece bearing retainers to create an incredibly scale and durable axle assembly. F10T axles use Vanquish Products AR44 gear sets and spools.

Recommended use with the following:

• Vanquish VS4-10 Kits equiped with straight axles such as the Origin, Pro and Phoenix (Straight Axle version)
• Vanquish Products VS4-10 Chassis Kit. PN VPS10130*
• Incision S8E 90mm Shocks (Offset pivot ball at shock mounting location) PN IRC00501.
• Incision Rod Ends and Pivot Balls (.280" width pivot balls)**
• Vanquish Products 6-Hole AR44 Gear set. PN VPS08330
• Vanquish Products 6-hole AR44 Spool. VPS08070
• Vanquish Products Rear axle shafts VPS08082

Features:

• Machined in the USA
• Made from high quality domestic produced aluminum
• Scale import truck style axle housing
• Adjustable rear upper link positions
• Comes with One Piece Bearing Retainers
• Double shear shock mounts for S8E offset pivot balls allowing for more shock tuning adjustment
• Rear Bearing Retainer Caps utilized to eliminate the need for lockouts and provide a more scale appearance

Includes the following:

• 1pc F10T Rear Housing
• 2pcs Bearing Retainers
• 1pc F10T Third Member
• 2pc Axle End Caps
• Required hardware
• Instructions

Does not include the following:

• hexes, hex pins, bearings, axle shafts, ring and pinion or locker

Required Bearings List:

• 2pc 7x14x3.5
• 1pc 5x14x5
• 3pc 5x11x4

**Not for use with Vanquish Products Brass Pivot Balls (.300" width)

****Due to the nature of the AR44 gear design, proper shimming of the pinion gear may be required for optimal results.
