SPECIFICATIONS

• Features:

  • Multiple Speed Ratios

  • DRUM SPEED 12VDC: SLOW 181 RPM; MEDIUM 400RPM (FACTORY INSTALLED); FAST 600 RPM.

  • DRUM CIRCUMFERENCE: 0.74"

  • All metal gear arrangement

  • 4 AVID RACING BEARINGS carrying the output gear and drum

  • Fully separated gear train and motor to allow for easy maintenance and reliability

  • Modular mounting potential

  • Nearly 360 degrees of drum access

  • All metal gear train

  • CUSTOM SPEC CORELESS BRUSHED MOTOR

  • 25,000 RPM @ 12V - 0.08A NO LOAD FULL SPEED DRAW



    Precision RC WORKS Raptor
    12v Digital controller
    Capable of up to 4s battery input.
    Included.






  Specifications:

  • Dimensions: 32.5 x 36.75 x 49
  • Weight: 84g
  • Mounting:
  • (2)  4 - M2.5 threaded holes on 8 x 19mm rectangle patterns (fairlead attachments or mounting)
  • (1)  4 - M3 threaded holes on a 19 x 22mm rectangle pattern
  • Spooling Speed:
  • Medium (FACTORY INSTALL: 400RPM) @ 25,000RPM = 24.5'/MIN

  Includes:

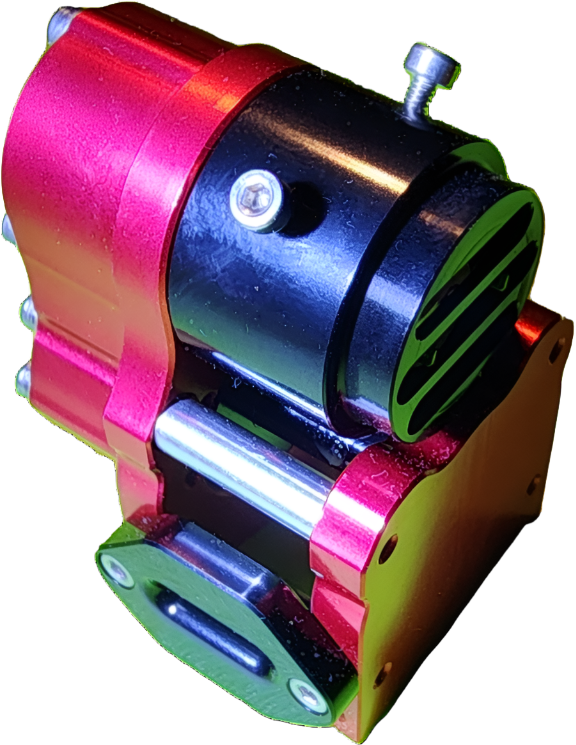

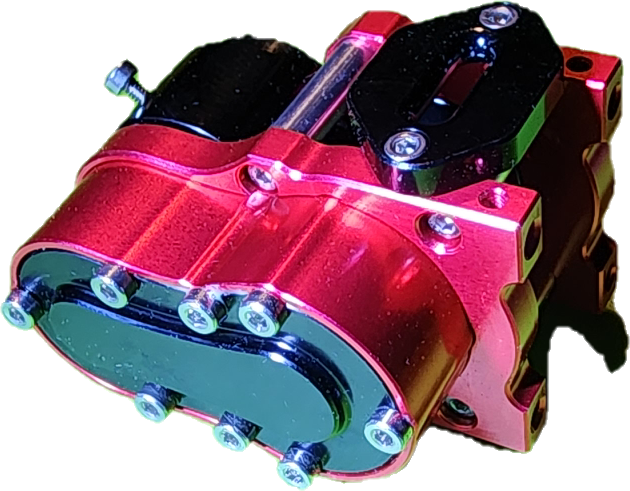

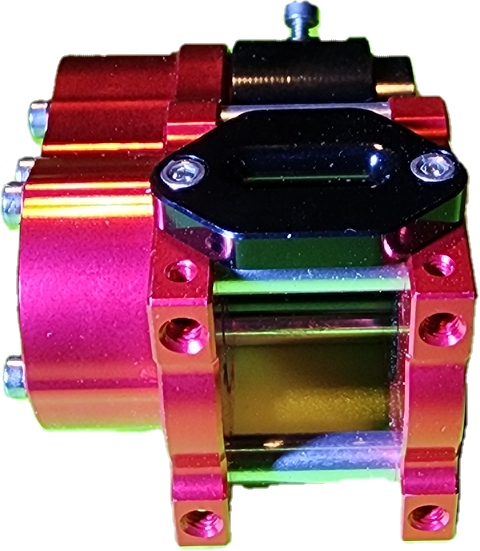

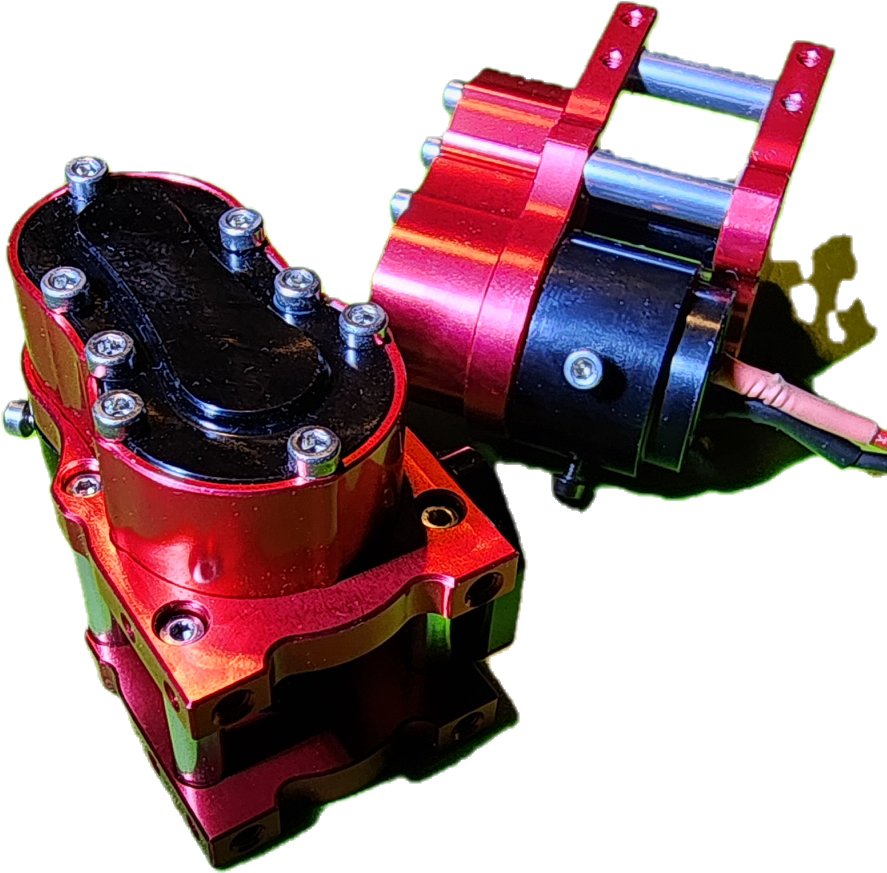

  • (1) TGH SCALE PERFORMANCE WINCH
  • (1) Fairlead - user installed
  • (1) TGH Dual Servo Mount Adapter Plate & hardware
  • (1) PRECISION RC WORKS RAPTOR Winch Controller - DE-CASED
  • (1) 6' 0.8mm diameter Dyneema winch line
  • Decal
